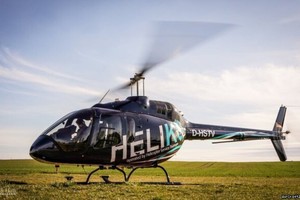

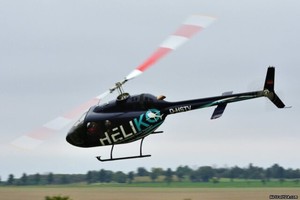

Bell - 505-jetranger-x, 2018

CENTRIFUGAL COMPRESSOR - 95,41% 26715 cy
GAS GENERATOR TURBINE - 14715 cy
POWER TURBINE DISC REMANING - 97,78% 13689 cy
REDUCTION GEAR MODUL - 63,33% 1.900 h
GAS GENERATOR MODUL - 63,33% 1.900 h
PUMP AND METERING VALVE - 63,33% 1.900 h
PUMP AND METERING VALVE - 1.536month
HP PUMP ASSY - 74,42% 3.200 h
PREF: INJECTOR PIPE - On Condition
FUEL INJECTOR PIPE LH - 27,25% 109 h (REPLACEMANT EVERY 400h)
FUEL INJECTOR PIPE RH - 27,25% 109 h (REPLACEMANT EVERY 400h)
DRIVE GEAR BEARING - 84,29% 5.900 h
DRIVE GEAR BEARING - 84,29% 5.900 h
INTERMEDIATE GEAR - 84,29% 5.900 h
INTERMEDIATE GEAR - 84,29% 5.900 h
INTERMEDIATE GEAR - 84,29% 5.900 h
GAS GENERATOR BLADE - 81,67% 4.900 h
GAS GENERATOR BLADE - 93,58% 18.715 cy
POWER TURBINE BLADE - 97,78% 13.689 h

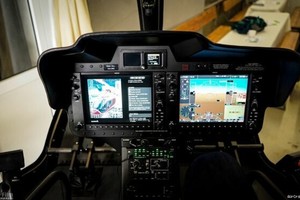

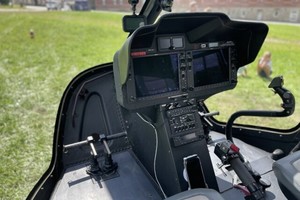

GARMIN G1000H

color: magic blue with removeable sticker (HELIKO)

- fresh 6 year 3 year 2 year anual inspection ! (major inspection)

- rotor brake
- dual controls
- Second VHF radio
- Radar Altimeter
- Avionics Upgrade Package (Sysnthetic View, HTAWS, TAS, VOR/ILS)
- on Bord WiFi / Digital Audio Broadcast (DAB) Entertaiment System
- operator confinience Package (cover cabin, blade strap, cover turbine outlet/intake)
- ground handling wheels
- groundhandling equipment (tow bar)

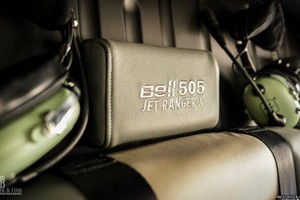

- VIP configuration (leader seat, head cushion, floor carpet, pilot equipment storeage)
- sliding Windows (Doors)
- always hangared
- CAMO oversighted (all ADs/SBs carried out)
- GARMIN 1000 database always updated

- all service carried out

- PILOT TRAINING (RATING) INCL. in PRICE
- IMMEDIATE AVAILABILITY

AIRFRAME
REMAINING TIMES

M/R HUB ASSY - 1.300 h
M/R TRUNNION - 19624 LDG
M/R GRIP ASSY - 2.600 h
M/R GRIP ASSY - 3.700 h
STRAP FITTING - 1.300 h
STRAP FITTING 1.300 h
STRAP PIN - 100 h
STRAP PIN - 100 h
TT-STRAP - 600 h / 17month (24 MONTH VERSION)
TT-STRAP - 600 h / 17month ((24 MONTH VERSION)
LATCH BOLT - 100 h
LATCH BOLT - 100 h
M/R BLADE - 2.900 h
M/R BLADE - 2.900 h
SWASHPLATE - 3.700 h 3.800 h
SWASHPLATE SUPPORT - 13.300 h
SWASHPLATE SLEEVE - 13.300 h
COLL. IDLER LINK -13.300 h
COLL.LEVER - 13.300 h
PILOT COLLECTIVE STICK - 5.461 h (CHANGED AFTER ALERT SERVICE BULLETIN - ASB)
MAST ASSY - 2.000 h
MAST - 4.400 h
MAST - 39624 LDG
MGB - 3.500 h
FREEWHEELING ASSY - 2.000 h
T/R GEARBOX - 5.000 h
T/R DUPLEX BEARING - 1.900 h
T/R HUB ASSY - 1.500 h
T/R YOKE - 3.900 h
T/R BLADE - 1.400 h
T/R BLADE - 1.400 h
MAIN DRIVESHAFT - 1.000 h
BRAKE CALIPER - 800 h
BRAKE CALIPER - 800 h
HYDRAULIK PUMP - 1.400 h
STARTER GENERATOR - 236 h (CHANGED ON WARANTY) (REPLACED WITH 3rd GENERATION)
ELT BATTERY - 33month
ELT REMOTE BATTERY - 115month
ELT BUZZER BATTERY - 115month
FIRE EXTINGUISHER - 65month
STANDBY ATT. Battery - 67month

LIVE MOUNT ASSY RH - 1.900 h
LIVE MOUNT ASSY RH - 15624 LDG
LIVE MOUNT ASSY LH - 2.136 h (CHANGED ON WARANTY)
LIVE MOUNT ASSY LH - 16358 LDG
LIVE MOUNT ISOLATOR ASSSLYS - 1.900 h
LIVE MOUNT ISOLATOR ASSSLYS - 15624 LDG

HORIZONTAL STABILIZER - 20.900 h
TAIL CONE ATTACHMENT - 1.900 h
TAILCONE ASSY - 12.900 h
MECHANICAL TRUSS - 1.900 h
CROSSTUBE ASSY FWD - 17624 LDG
CROSSTUBE ASSY AFT - 2124 LDG
SKID TUBE ASSY - 2124LDG
