Bombardier - 5000

Honeywell 2000 XP Integrated Avionics System
• Six 8"x 7" DU-870 Color EFIS displays, 2 PFD/2 EICAS/2 MFD
• Triple Honeywell Laseref IV Inertial Reference Units
• Triple Honeywell AZ-940 Micro Air Data Computers
• Quad Honeywell DA-810 Data Acquisition Units
• Dual Flight Management System w/ CD-820 CDUs
• Dual Honeywell GPS w/ LPV
• Triple IC-810 Integrated Avionics Computers
• Primus 880 Weather Radar
• Full Authority Digital Engine Control System
• Central Aircraft Information Maintenance System
• Dual Honeywell Primus II Radio Management Units
• Dual Honeywell RCZ-833M Integrated COM/Ident Radios
w/ Mode S Diversity Transponders (8.33 kHz compliant)
• 3rd VHF Comm Installation Honeywell RCZ-833 (8.33 MHz)
• Dual Honeywell RNZ-851 Integrated NAV Radios
with VOR/ILS/MKR / ADF / DME (FM Immunity compliant)
• Dual Collins ALT-4000 Radio Altimeters
• Dual Collins HF-9031A HF Communication System
• Single Avtech CSD-714 SELCAL
• Honeywell TCAS 2000 w/ Change 7.1
• Honeywell Mark V EGPWS
• Honeywell SSFDR Flight Data Recorder
w/ Crew Force Measuring System
• Honeywell SSCVR Cockpit Voice Recorder
w/ Datalink Capability
• Lightning Detection System

• FANS 1/A w/ AFN, CPDLC and ADS-C
• Batch 3.4 Compliant
• ADS-B Out
• CPDLC, MNPS, RNP4 30/30, RNP10, RVSM Capable
• Jumpseat Audio Panel
• ARTEX 406 ELT with Nav Interface
• Head Up Display System
• Honeywell DL-950 USB FMS Data Loader
• ATG-5000 w/ Wi-Fi
• Collins SRT-2100 SATCOM System
• ICS-120A Iridium Communication System
• Forward and Aft Bulkhead Monitors w/ Apple TV
• Airshow Network Passenger Information System
• Office in the Sky
• 115VAC/60Hz Outlets in Cabin, Galleys and Lavatories
• Logo Lights

West Star Aviation, East Alton, IL, December 2020.

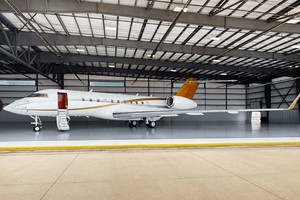

Aircraft is overall Polar White with Gold and Silver accent stripes on the fuselage. Tail and winglets are Gold

General information
• Bombardier Completion Center, Montreal, August 2005
• Softgoods replaced December 2020 at West Star Aviation, East Alton, IL
• Fireblocked, (FAA and TCCA STC)
• Thirteen (13) passengers plus one (1) jumpseat.
Jumpseat for crew use only

Entrance
• The galley and galley annex feature a high temp oven, microwave, coffee maker and chiller area
• Forward crew lavatory

Forward cabin
• Forward cabin features four (4) executive club seats with foldout tables

Mid cabin Mid cabin features a four-place (4) conference group with table on the left with a credenza including
entertainment equipment on the right

Aft cabin
• Aft cabin features two (2) executive club seats with a foldout table on the left. The right side features
a berthable divan certified for three (3) passengers, taxi, takeoff and landing
• Aft full lavatory
