Bombardier - 60xr

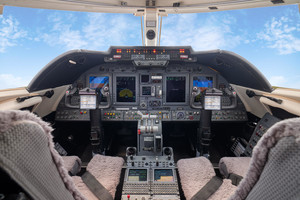

Collins Pro Line 21 EFIS / Avionics Suite:
• Dual Collins FMC-5000 Flight Management Systems (FMS)
• Dual Collins GPS-4000S GPS receivers (WAAS/LPV)
• Dual Collins FSU-5010 Flight Management / Storage Units
• Dual Collins VHF-422C VHF radios (8.33 kHz spacing)
• Dual Collins VOR/ILS/Marker receivers (FM immunity)
• Dual Collins ADF-462
• Dual Collins DME-442
• Dual Collins TTR-4000 TCAS II (Version 7.1)
• Dual Collins TDR-94D Mode S transponders with EHS and ADS-B Out
• Collins RTA-854 weather radar
• Dual Collins ALT-4000 radio altimeters
• Dual Collins FGC-3000 autopilot / flight director
• Dual Honeywell KRX-1053 HF radios
• Dual Collins ADC-850D air data computers
• Honeywell Mark V EGPWS with windshear detection
• Runway Awareness and Advisory System (RAAS)
• FreeFlight JETCALL-5 SELCAL system
• Artex C406-2 ELT / NAV interface
• Dual DB Systems 700-002 audio panels
• L3 FA2100 Flight Data Recorder (FDR)
• Universal CVR-120 Cockpit Voice Recorder (CVR)
• L3 Stormscope WX-1000E
Navigation capabilities: P-RNAV, B-RNAV, RVSM, ADS-B Out and WAAS/LPV.

• Thrane & Thrane TT-5040A SATCOM
• Third emergency battery (XR)
• Pulsating recognition and landing lights
• Tail illumination package
• Emergency lighting package
• Cockpit speaker mute switch
• Patient loading system
• Provisions for Spectrum medevac equipment
• CAMP maintenance tracking program

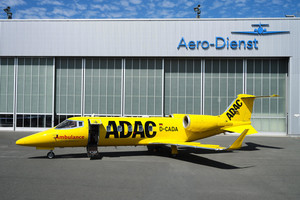

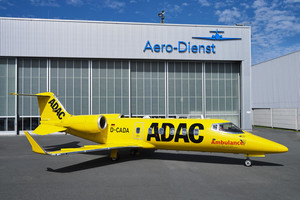

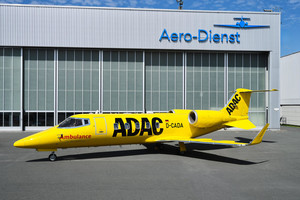

The aircraft will be delivered with brand-new all-white exterior paint.

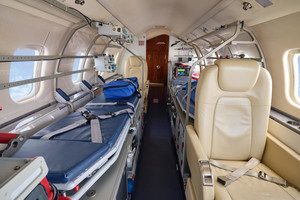

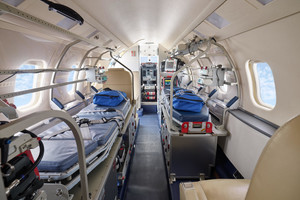

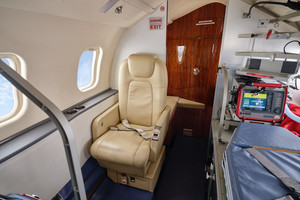

Felxible medevac interior with three different certified cabin configurations:
• 2 intensive-care stretchers 2 individual seats
• 1 intensive-care stretcher 4 individual seats
• 1 incubator on stretcher base 4 individual seats

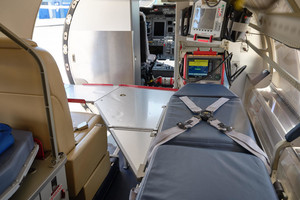

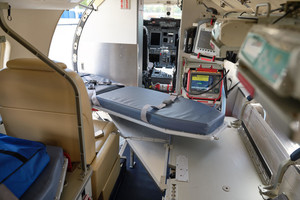

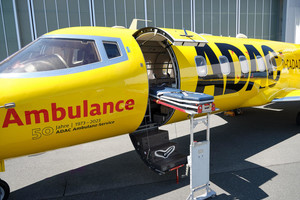

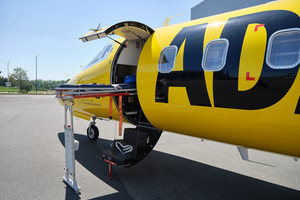

Both intensive-care stretcher units feature cabinets, drawers and carriers for medical equipment. Dedicated patient loading system for safe and efficient patient handling. Durable, slip-resistant non-textile flooring.

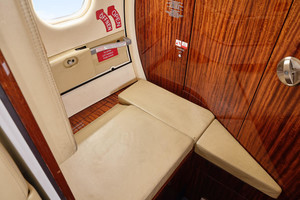

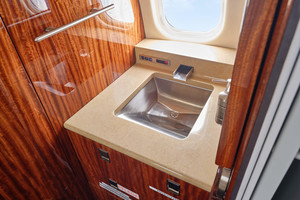

Belted aft lavatory seat and washing basin. Removed VIP equipment, including divan, seats, monitors, carpet and cabinet, is included in the loose equipment.
Medical equipment as shown in the carrieres and cabinets are not included. Incubator system is not included and requires an additional adapter plate.
