Embraer - Legacy 600

Type of Unit

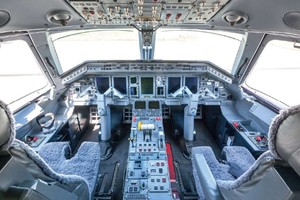

EFIS (Electronic Flight Instrument System) Qty 5 Unit Description
8” x 7” LCD Displays
ISIS (Integrated Standby Instruments System) 1 Honeywell Primus
FMS (Flight Management System) 2 Honeywell NZ-2000
IRS (Inertial Reference System) 2 Honeywell Laseref IV
GPS (Global Positioning System) 2 Honeywell GR-550
ADC (Air Data Computer) 2 Honeywell AZ-950
NAV (Navigation Radio) 2 Honeywell RNZ-851
DME (Distance Measuring Equipment) 2 Honeywell RNS-851
ADF (Automatic Direction Finder) 2 Honeywell RNZ-851
RMU (Radio Management Unit) 2 Honeywell RM-855
EFB (Electronic Flight Bag) 2 Class 2 EFB
EICAS (Engine Indication/Crew Alerting System) 1 Honeywell Primus
A/P (Autopilot) 1 CAT II Autopilot
VHF COM (Very High Freq. Communication) 3 Honeywell RCZ-833K w/ 8.33 KHz Spacing
HF COM (High Freq. Communications) 2 Honeywell KRX-1053 w/ SELCAL
SATCOM (Satellite Communications) 1 Aircell ST-3100
RADAR 1 Weather WX-880
RADAR ALT (Radar Altimeter) 2 Honeywell RT-300
XPNDR (Transponder) 2 Honeywell RCZ-833k w/ Mode S
EGPWS (Enhanced Ground Proximity Warning System)
1 Honeywell Mark V w/ Windshear
TCAS (Traffic Collision Avoidance System) 1 ACSS TCAS-2000 w/ Change 7.1
CVR (Cockpit Voice Recorder) 1 L3 SSCVR
FDR (Flight Data Recorder) 1 L3 SSFDR (88 Parameters)

The interior arrangement provides accommodation for two pilots and one flight observer in the cockpit, and 13 passengers
in the cabin.

A forward full service galley and crew lavatory are situated between the cockpit and the cabin. The cabin is divided into forward, mid and aft compartments and at the rear of the aircraft is a vanity room / lavatory which also provides cabin access to the baggage compartment.

GALLEY
A forward galley is located on the right hand side of the aircraft with dedicated space for food and beverage storage, preparation and service.
The galley is equipped with the following features:
• Crystal sliding doors in Lexan®
• Solid sliding compartment doors
• Plated faucet with swivel goose neck spout
(mixed for hot and cold water)
• Corian® Countertop sink
• Miscellaneous storage
• Trash container (11.8gal)
• Ice drawer with overboard drain (with clean ice compartment)
• Microwave oven
• Customs seals on latches
• Three (3) universal electrical outlets behind the
solid sliding compartment doors
• Paper holder behind the solid sliding
compartment doors
• Sink cover with Teflon® cutting surface
• Home style Stainless steel galley sink
• Two Teflon® working surface
• Removable shelves
• Fixed shelves

The galley also holds all the cabin entertainment equipment.
The aircraft is equipped with one Blu-ray Player, stereo speaker system, moving Map and two (2) 17,5" HD widescreen monitors located at the forward left hand bulkhead and in the aft cabin at the aft right hand bulkhead.
In order to separate the galley from the passenger zone, while optimising space, a dual pocket door is provided.

FORWARD CABIN

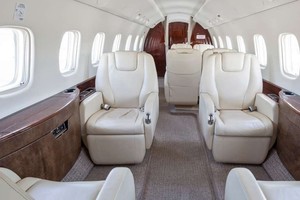

The forward cabin consists of 4 single club seats which can be converted into 2 individual beds. Walnut veneered
tables fold out between facing seats providing a luxurious working surface or dining table. A 17.5" HD widescreen monitor is situated on the forward left hand bulkhead.

MID CABIN

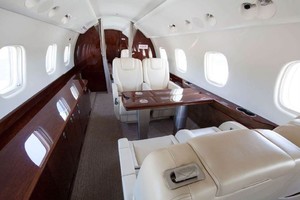

The mid cabin comprises two double club seats facing each other (4 places in total) with a dining / conference
table in between. On the right hand side is a walnut veneered credenza for storage or cabin items, headphones,
DVDs and magazines. This seating configuration allows one double sized berth.

AFT CABIN

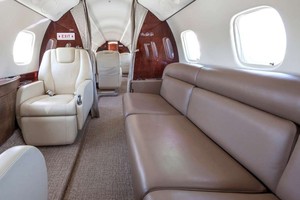

The aft cabin consists of a full berthing, three-place divan on the right hand side and two facing club seats on the left hand side (5 places in total). The divan is fully beding and the club seats may be converted into one individual bed. The aft compartment provides a complete externally serviced lavatory with a vanity, coat storage and an access door to the
in-flight baggage compartment.

• Fwd cabin zone: two single club seats at each side Mid cabin zone: two double club seats at the left side (LHS) and a
credenza at the right side (RHS)
• Aft cabin zone: one single club seat at the left hand side (LHS) and a divan at the right hand side (RHS)
• Acoustic entry curtain
• Mid cabin partitions
• Forward dual pocket door and aft single hinged door
• Satellite in-flight phone system with two handsets being 1 cordless located in the VIP seat of zone C and 1 corded located in the double seat of zone D
• 8.9" HD Galley Touch screen control located in the Forward Wardrobe
• 1 Auxiliary Panel located in the VIP seat of zone C with 1 VGA port, 1stereo Jack, 1 HDMI, 1 USB, one 1 Ethernet and 1 RCA
jacks to audio and video.
• Moving Map
• Blu-ray Player located in the entertainment cabinet which plays CD,
• DVD and Blu-ray disks. The player supports all Blu-ray media regions and one DVD media region.
• iPodTM docking in the VIP seat
• 17,5" HD widescreen monitors at the LHS of the forward bulkhead and RHS of the aft bulkhead
• VIP function control Panel in the VIP seat located in the Zone C
• Galley and aft lavatory water heater
• Access door to baggage compartment, door light, life vests at each seat, antiblockage barrier with a net, restraint net
• Fifteen (15) universal power (110 V) outlets being three in the galley, one in the forward wardrobe, one in the aft lavatory,
one for each single seat, one for each double club seat set and two in the creden-za.
• Universal power (110V) outlets located in the cock-pit LHS and RHS lateral consoles
• Observer seat
