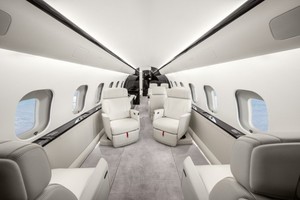

| Standard Cabin Features Seating for Thirteen Passengers in Three Distinct Zones: |

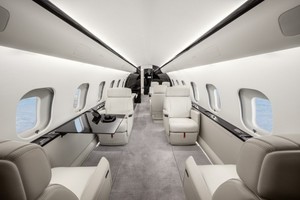

- Zone 1: 4-place Club Seating (single seats)
- Zone 2: 4-place Conference Group Opposite Credenza
- Zone 3: 2-place Club (single) Seating Opposite 16G 3-place Divan
- 2 Lavatories, Forward and Aft
|
| Notes: |

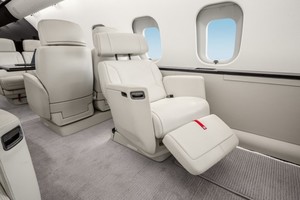

- All Single are Seats Capable of Berthing and Recline, Track and Swivel with Legrest and Inboard Armrest Storage. Each Single Seat Includes Drink Holder, Receptacle for Plug-in Tablet Holder and Switch Panel, and Headset Jack. RJ-45 Jack at the Master Seat Location in Zone 1
- Double Seats are Capable of Reclining and Base Tracking. Hi-Lo Single Pedestal Table Installed Between the Double Seat Grouping, with Two Headset Jacks on the Sideledge and Two on the Outboard Armrests
- Credenza Includes Media Bay, Four Single Universal GFCI Electrical Outlets, one RJ-45 Port, Two USB Charging Ports, One HDMI 4K Port, Two HDMI HD Ports, One Audio Jack and Storage

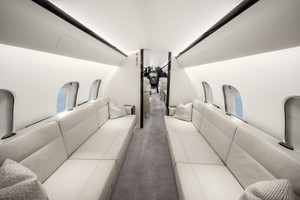

- 3-Place Divan Includes Telescopic Shoulder Harness Posts, Provisions for Sleeping Belt, Berthing Capability with Release Lever, Storage Space, and Forward/Aft Ends with Cup Holders, Switch Panel, Plug-in Tablet Holder Receptacle and Headset Jack
- Manually Sliding Pocket Doors Separate Zones (with hinged door for lavatory)
|
| Cabin Entertainment : |
- Dual Channel Iridium Telephone System
- Inmarsat Swift Broadband (SBB) SATCOM System
- Ten Universal GFCI Electrical Universal Outlets at Various Locations
- Five Wireless Passenger Control Units (WPCU) to Control Cabi System Including Entertainment, Cabin Utilities and Displays
- Cabin Management System Features a Fiber Optic Network
- In-Flight Entertainment (IFE) System Including Worldwide Maps and Audio Cabin Briefing
- One (1) 24†4K Monitor Mounted on the Aft Facing Bulkhead in Zone 1A;
- One (1) 24†4K Monitor Mounted on the Forward Facing Bulkhead in Zone 3B;
- One (1) HDMI Port at MSL1 in Zone 1A;
- One (1) HDMI Port at MSL1 in Zone 3B;
- Two (2) Bluetooth Wireless Audio Receivers and One (1) Audio Input (1/8" Stereo Jack for Audio Distribution to Speakers and Headphones;
- An Audio System Comprising Ten (10) Speakers and Four (4) Subwoofers Connected to Audio / Visual Media System;
- Six (6) Cabin Headsets with Active Noise Compensation Provided as Loose Equipment
|

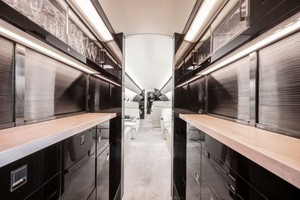

| Galley (RH) Features : |
- Crystal Showcase
- Flatware and Utensil Storage, Inserts to Accommodate Sets
- Sealed Waste Drawer with Garbage Bag Retainer Ring
- Stainless Steel Sink with Strainer, Faucet, and Sink Cover with Cutting Board on Reverse Side
- Miscellaneous Storage Drawer Concealed Under the Sink
- Divided Clean Ice/Bottle Storage Drawer with a Manual Plunger for Drainage
- Chilled Soda Can Drawer
- Laminated and Insulated Chilled Storage Compartment with Three Removable Trays/Shelves
- Two Single Universal GFCI Electrical Outlets
|
| Galley Annex (LH) Features : |
- Crystal Showcase
- China Storage Drawers
- Flight Attendant HD Touchscreen
- One High Temp Oven
- One High Temp Microwave Oven
- Two Single Universal GFCI Electrical Outlets
- Two Pull-out Work Surfaces
- Miscellaneous Storage
|
|
Lavatory Details (forward and aft locations) :
|
- Vacuum Toilet with Hinged Padded Lid and External Water Servicing
- Vanity Cabinet with Sink and Faucet
- General Storage, Hand Towel Holders, Universal GFCI Electrical Outlet, Sealed Trash Bin
|
| Baggage Accommodations |
- Two Fold-down Shelves with Support Gusset and Restraint Straps
- One 60†Removable Hang-Up Bar
- One LH Fold-up Hang-up Bar
- Two Storage Areas with Removable Coat Rod and Net
- Provisions for Removable Mid Cabin Bulkhead
- Storage with Net Forward of the External Baggage Door
|
| Additional Interior Information: |
- Electric Accordion Type Window Shades
- A Passenger Service Unit (PSU) Incorporates a Handrail, Oxygen Masks for Each Seating Position, Cabin Entertainment System Speakers, PA Speakers, Individual Adjustable Air Gaspers, and Lighting
- Cabin Lighting System Including Boarding Lights, Accent Lights, Emergency Lights, Ordinance Signs, Seat Reading and Table Lights
- Custom 100% Wool Carpet for the Floor in the Entrance Area, Cabin, and Lavatories. Factory Standard Materials are Used for the Cockpit and Baggage Carpet
|
