Avionics:
INSTRUMENTS & STANDARD AVIONICS
° 1 GMA 36B Audio controller with Bluetooth audio link and integrated marker beacon receiver, intercom and public address capability

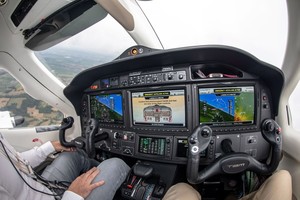

° 2 GDU 1250W, 12'' WUXGA high resolution PFD displays Primary Flight Displays
° 1 GDU 1250W, 12" WUXGA high resolution MFD Multi-Function Display with engine, pressurization, electrical, fuel, flaps and trims indication, Crew Alerting System (CAS), checklist capability, aircraft synoptics and navigation mapping system.
° 2 GIA 64W Nav/Com/ILS/WAAS GPS
° 2 GEA 71B Engine and airframe interface unit
° 2 GRS 79 Attitude and Heading Reference System (AHRS)
° 2 GMU 44 triaxial magnetometer
° 2 GDC 72B digital air-data computers w/ dual probe system
° 1 GTX 345 Mode S Extended Squitter transponder (#1) ADS-B In & out
° 2 GTC 580 Tactile Controllers conveniently located on the reclined section of the panel
° 1 GMC 711 AT autopilot and autothrottle mode controller located in upper central panel
° 4 GSA 81 torque flight servos (yaw, pitch, pitch trim and roll)
° 1 GSA 87 Servo actuator for Autothrottle
° 1 GTA 82 adapter for yaw auto trim device
° MD302 Back up Attitude, Airspeed, Altitude and heading digital display, 2 screens instrument with MD32 remote magnetometer
° LPV, LNAV/VNAV (including Baro VNAV) approaches support and advisory vertical guidance for LP, LNAV and Visual approaches
° Smooth transition from barometric VNAV to Glideslope/path
° e-Copilot:
- ESP Electronic Stability and underspeed Protection
- AOA/stall indicator and Stick shaker based on heated probe
- Surface Watch® for airport environment awareness
- Auto-Ice protection system with ice detection sensor
- LVL Level button to roll level and hold altitude
- EDM emergency Descent Mode
- HomeSafe® emergency autoland function
° CPDLC
° 1 Flightstream FS510 Bluetooth/Wifi allowing Tablet to Avionics secured exchange information channel
° Airframe de-icing control panel
° Inertial separator control
° Landing gear control panel
° Electric generation controls and monitoring on overhead panel
° Dedicated master warning and caution for Crew Alerting System message acknowledgement
° Voice Alert System
° Cabin temperature control (dual zone, with override capability)
° Heated stall warning system
° Digital chronometer displayed on GDU
° Digital Flight time hourmeter
° Instrument panel lighting, CB dedicated switch lighting
° 2 Bose Headsets
° Flight Data Recorder
Equipment:
CONTROLS
° Dual flight controls, control wheel leather covered with 8 integrated functions on pilot control wheel: Push to
talk, Autopilot, CWS (Control Wheel Steering) electric pitch and rudder trim, Transponder, Frequency Changer,
Stormscope, Timer.
° Elevator, rudder and aileron electric trim
° Electrical pre-select flaps with integrated asymmetry detection system
° Central console including:
- Single lever power control featuring Autothrottle associated with engine smart single gauge, with bleed
inhibition in low idle condition
- Electric flap control
- Fuel selector
- Manual pitch trim
- Ailerons electric trim
- Manual override control
° Adjustable rudder pedals
° Landing gear handle
° Dual toe brakes - Parking brake
° Landing gear emergency extension handle
° Automatic environment and pressurization control system with max diff mode
° Alternate static source control
° Alternate ram air source control
FUEL EQUIPMENT
° One structural fuel tank per wing
° Engine driven fuel pump
° Standby electrical fuel pump and low pressure switch/ indication
° Fuel tank selector with automatic fuel tank sequencer unit
° Capacitive fuel gauges with low fuel level warning system
ICE PROTECTION
° Pneumatically deiced wing and tail unit
° Heated engine air intake lip
° Pilot controlled engine inertial separator
° Electrically heated propeller blades
° Electrically heated pitot tubes
° Electrically deiced stall warning sensor
° Pilot & Co-pilot electrically heated windshields - Ice detector light
ELECTRICAL EQUIPMENT
° Automatic starter generator transition during start
° Lead acid battery 24V - 42 A.h
° Starter generator 28V - 300 Amp
° Standby generator 28 V - 100 Amp
Exterior:
° 2022 Paint Scheme
Do it yourself - Select your personal Paint Scheme to fly the most unique TBM ever designed.
With a choice among thousand possibilities, you can turn your aircraft magically visible in the sky and majestically stand out on taxi ways. Strong coating and paint quality are carefully applied to last under extreme weather conditions.

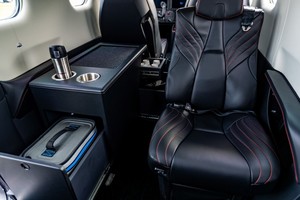

Interior:
Premium Edition Fittings Included
° 6 fabric heated seats with adjustable backrests, folding armrests and intermediate seats with forward or
backward accommodation with multiple installation configuration
° Side beam seat Polished Aluminum finish
° Fully adjustable (3-axis) pilot and co-pilot seats and adjustable rudder pedals
° Cabin accommodation capable of 4 seats layout includes 2 nets for luggage load
° New leather color on the upper and lower panels of the cabin, on the seat and new wood, wool carpeting
° Individual fresh-air vents and reading lights
° Pilot and co-pilot sun visors
° Ship-powered headset jacks behind each seat (Bose Lemo plugs) and on instrument panel
° Baggage compartment with straps and baggage net
° Halon cabin fire extinguisher
° Parking protection kit - Windshield cover
° Environment system with engine driven air-conditioning system (VCS)
° New Cockpit and Cabin Cup Holders (new cup holder in the rear armrest
° Coat Hanger
° Cabin foldable table
Do it yourself - Personalize YOUR TBM940! Pick your most favourite leather designs, stitching and colours to create your personal cabin ambiance.
