Avionics:

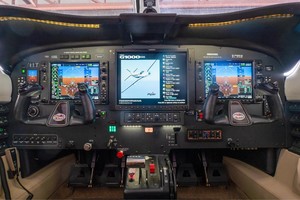

INTEGRATED FLIGHT DECK: Garmin G1000NXi with Synthetic Vision
PFD (Primary Flight Displays): Dual 10” Garmin G1000NXi
MFD (Multi-Function Displays): 15” Garmin G1000NXi
MMC (Multi-Media Card): Flight Stream 510
COMM/NAV (Communications/Navigation): Dual GIA 63W with WAAS, LPV, and GPS
AP (Autopilot): GFC 700
APC (Autopilot Controller): GMC 710
FMSC (Flight Management System Controller): GCU 476 Keypad
ACP (Audio Control Panels): Dual GMA 1347
ADC (Air Data Computers): Dual GDC 74A
XPNDR 1 (Transponder 1): Garmin GTX335 with ADS-B and TIS-B
XPNDR 2 (Transponder 2): Garmin GTX345 with ADS-B and TIS-B
WX RAD (Weather Radar): GWX 68 Color Radar
STORMSCOPE: BF Goodrich WX500
SAT RADIO/WX DR (Weather Data Receiver): GDL69A
XM RADIO: Displayed on MFD
SAM (Standby Attitude Module: Mid-Continent MD302 per STC SA01969SE
TAS (Traffic Advisory System): Bendix King KTA870
TAWS (Terrain Awareness Warning System): TAWS-B
DIGITAL CHARTS: Jeppesen ChartView
TES (Terminal Environment Safety): Garmin Safe Taxi
Flightstream 510
MD302 Standby Attitude Module
Equipment:
Aeromech RVSM STC SA02654SE
Garmin G1000 NXi Upgrade per STC SA01947WI
Flighstream 510
Mid-Continent MD302 Standby Attitude Module STC
RG41/53 Upgraded Battery (New 1/2021 per STC)
Battery Trickle Charger Connection Plug
Fold-Down Crew & Middle Row Seats
LED Taxi and Landing Lights
Garmin Surface Watch & Jeppesen Chartview
Exceedance Warning System
Crew Alerter System
Turbine Inlet Plugs
Stainless Steel Cowling Fasteners
Relief Tube
Right Storage Cabinet
Upgraded H3R Halon Fire Extinguisher
Compressor Wash Ring
Enhanced Rosen Sun Visors
AmSafe Seatbelt Airbag V23 System (PIlot & Co-Pilot Seats)
Whelen Orion 600 Wingtip Strobe and Nav Lights
PROPELLER
Manufacturer: HARTZELL
Model: 5D3-N338A1/78D01B
Time: 121 SNEW
Number of Blades: 5

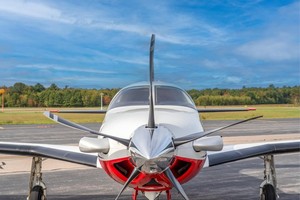

HARTZELL 5-BLADE PROP INSTALLED 1/2024
Hartzell 5-Blade Prop Specifications:
Hartzell 82.5” inch diameter 5-bladed, all carbon
Advanced Structural Composite, Second Generation (ASC-II), swept-tip, scimitar composite blades with all
new lighter-weight aluminum “Raptor®” hub propeller.
4000 hour / 6 year TBO
128.8 pounds (prop and spinner)
Replaces:
Hartzell – 82.5” HC-E4N-3Q/E8501B-3.5 4-bladed aluminum
4000 hours/6-year TBO
144.8 pounds (5-Blade is 128.8 pounds)
Diameter: to 82.5” Max., 81.5” min
ADVANTAGES (Per Hartzell Specifications):
Carbon fiber construction allowing for thinner, stiffer airfoil design for better all-around performance
20% greater take-off acceleration
90 FPM better ROC at Vy
2-3 knots cruise speed increase
Significantly reduced weight
Measured take-off and climb noise number of 74.9 dB(a) complies with both FAR Part 36, Appendix G, and ICAO, Annex 16, Chapter 10 by a wide margin. 1.9 dB(a) reduction from standard airplane
No change in RPM limitations or placards
Strongest material available with field replaceable nickel steel leading edge erosion shield – no lost performance due to reduced diameter
Best Warranty in the industry along with worldwide support

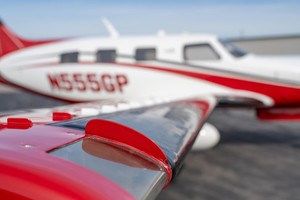

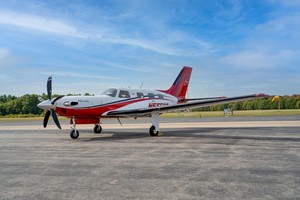

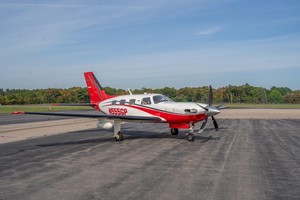

Exterior:
Year Painted: 2013
BASE: Matterhorn White (P6294)
TRIM COLOR 1: Ferrari Red (L5135)
TRIM COLOR 2: Gloss Black (P2333)
Interior:
Year Interior: 2013
Number of Seats: 6

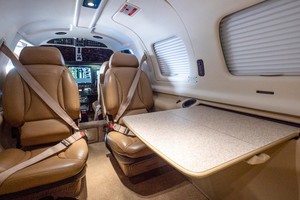

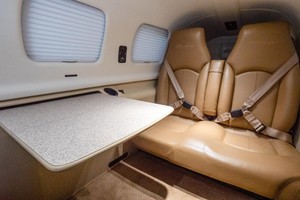

Premium Dune (Tan) Leather Interior with Coordinated Side Panels, Carpet, and Headliner. Fold-out Executive Table, Individual Reading Lights, Accent Lights, Phone/Mic/Aux Music Input Jacks. Fold Down Crew & Middle Row Seats for Easier Cockpit Access.
110V Power Plugs in Cockpit & Cabin.
