Описание двигателей:
Два двигателя Pratt & Whitney Canada, Модель PW210A1 HP.
Двигатель 1 СНЭ: 27,47 ЛЧ
Двигатель 2 СНЭ: 27,47 ЛЧ

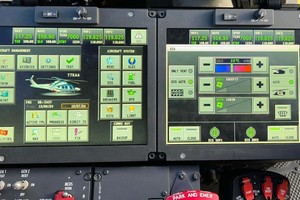

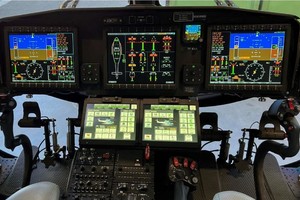

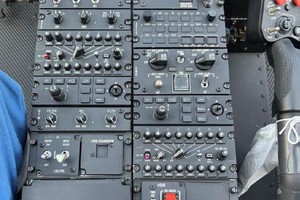

Авионика:
ADS-B Out (Automatic Dependent Surveillance - Broadcast)
Health and Usage Monitoring System (HUMS)
Flight Data Monitoring system (FDM)
Helicopter Terrain Avoidance and Warning System (HTAWS)
Synthetic Vision System (SVS)
RNP Approach with LPV/LP minima
RNP 0.3 navigation in all phase of flight FMS capability
Оборудование:
Ice detector, stowage pocket for portable ELT, first-aid kit
Increased Gross Weight (4800 kg MTOW)
Engine Compressor Washer

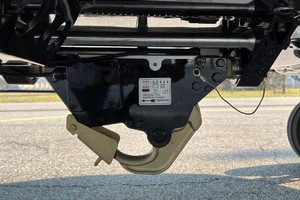

Cargo hook 1500 kg - Provision and Removable
Underbelly Cameras (Qty 2)
Engine Air Particle Separators – Provision and Removable
Bear Paws – Provision and Removable (not installed provided as loose
item)
Medevac Layout on Utility Floor (Single Stretcher Aerolite) (not installed
provided as loose item) including:
Panel AFT Assy, Rework installed
Stretcher Life Jacket installed
Extinguisher installed
Customized Track installed
Loose Safety Equip (provided as loose item)
Light Stretcher Cirrus 1000 (not installed provided as loose item)
Retainers for Transversal Light Stretcher on utility floor (not installed
provided as loose item)
Safety and loose equipment for Medevac Layout (not installed provided
as loose item) including:
headpad, safety harness, rescue triangle
Экстерьер:
Customized painting scheme 2-3 metallic colors from Company
paint selection
Standard painting and finishing
Up to 4 colors from LHD selection
Painting scheme and finishing from LHD selection
Registration Marks and Logos
Tail rotor high visibility painting
Интерьер:
Steps for cockpit / cabin access
Rotor brake system
Second radar altimeter
One solid state Cockpit and Voice Flight Data Recorder with provision
for image recording and 90 days ULB battery (as per AIR OPS)
One Emergency Locator Transmitter (ELT - 3 frequencies) (fixed)
Overhead cockpit windows sunshades
First aid kit (as per AIR OPS)
One cockpit and one cabin fire extinguisher (as per AIR OPS)
USB Interseat Console Socket
Maritime and Corrosion Protection
AW 169 Enhanced Performance Pack
Модификации / изменения:
Empty Weight: 3.157,18 Kg
MTOW: 4.800 Kg
Состояние осмотра:
Certification: EASA compliant
Другие комментарии:

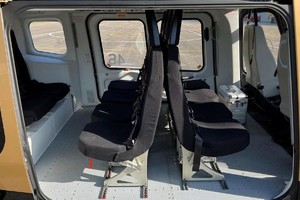

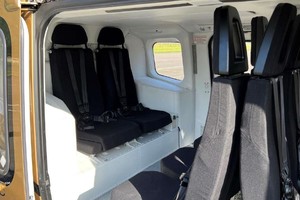

Utility 10 Pax
Increased Gross Weight 4.800 Kg
EAPS Engine Air Particle Separators FP & RP
Cargo hook 1.500 Kg FP & RP
Avionic Phase 7 Enhanced and Phase 8
In airworthiness condition
Under Warranty until Feb 2026
