Boeing - Bbj

• COM: Collins VHF-920 - P/N 822-1250-002
• NAV: Collins VOR-900 - Receiver P/N 822-0297-001
• FMS: FMC(Smith Industries 2907C1) P/N 176200-01-01
• HF: Collins HFS-900 - P/N 822-0330-001
• ADF: Collins ADF-900 – P/N 822-0299-001
• DME: Collins DME-900 - Interrogator P/N 822-0329-001
• ATC Transponder: Collins TPR-901 P/N 822-1338-205
• RADAR: Collins WRT-2100 – P/N 822-1710-001
• TCAS: Collins TTR-921 - Computer version 7.1 P/N 822- 1293-033
• MMR: Collins GLU-2100 P/N 822-2532-100
• CVR: L3 P/N 2100-1020-00
• DFDR: L3 P/N 2100-4043-00
• EGPWS: Honeywell P/N 965-1690-052 Mark V
• ELT: ARTEX B406-4 P/N 453-5004
• SELCAL: TEAM INC. P/N SL3924AA01
• Collins Airshow 4000
• Satcom: Ku-Band and SBB
• Airborne Data Loader: Teledyne P/N 2235300-01-1

AUX FUEL SYSTEM
PATS Seven auxiliary system tanks(2 FWD, 5 AFT)
Configuration 1-P

NAVIGATION & COMPLIANCE
RVSM RNP 5
CPDLC (FANS 1/A) RNP 10
TCAS 7.1 STEEP APPROACH & OPERATION AT CANNES AIRPORT 8.33
ADS-B Out V2 WAAS/LPV

16(pax) 6(crew)
Built-in Forward airstair
Cabin interior noise reduction
Aviation Partners blended winglets
ADS-B Out V2
CPDLC(FANS 1/A)
Aerocon Cabin Interior Noice Reduction System
Securaplane Fin & Tail Cameras
2x life rafts for 25 pax each and equipped with ELT
USB cockpit power outlets for EFB’s
Low utilization maintenance program (1200H/year max)
Head-up Guidance System (Cat IIIa capable)

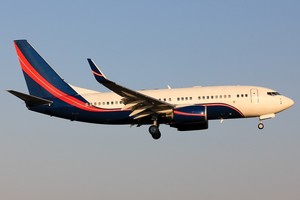

White & Navy Blue w/Red & White Accent Stripes

• The cabin is divided into the forward entry, crew lavatory, crew rest, guest lavatory, galley, pantry, lounge, dining/conference, guest bedroom, aft hallway, master bedroom, and master lavatory areas.

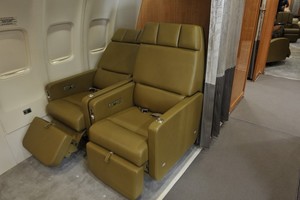

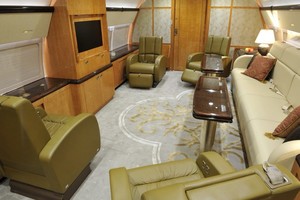

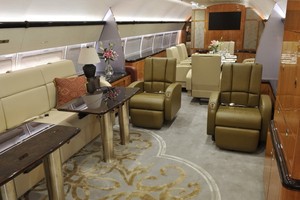

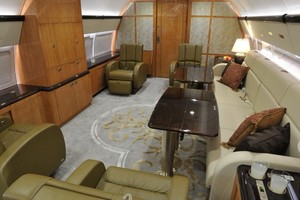

• The forward cabin houses the lounge area, which is laid out with a right-side conference/meeting group with a four-place divan with two executive chairs and two Hi Lo tables. On the left side of the lounge area is a two-place club style seating arrangement with entertainment cabinet

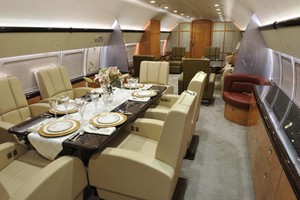

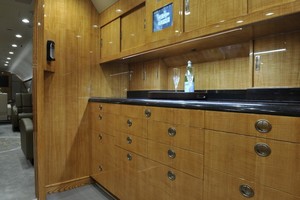

• The mid cabin area houses a dining group made up of six individual executive style seats with a hi lo meeting/dining table. There is a full-length credenza on the right side along with a corner observation/secretary chair.
• On the aft bulkhead is a 42h flat screen TV/monitor.

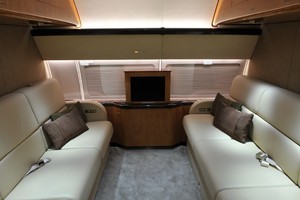

• The hallway, leaving the mid cabin on the right side, leads to a guest room that houses two three place divans that convert into a full-size bed. There is a credenza with a 21h TV/monitor on the left side of the guest room and the room can be made private by the sliding pocket door.

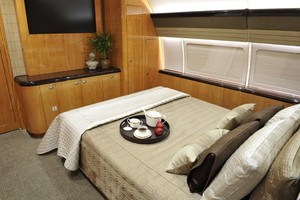

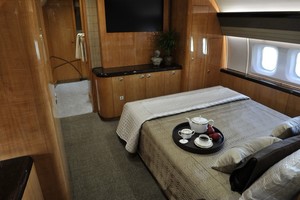

• The hallway leads further into the master bedroom area. The master bedroom a full-size bed and night tables with reading lights, wardrobe and a 42h flat screen TV/monitor on the aft bulkhead.

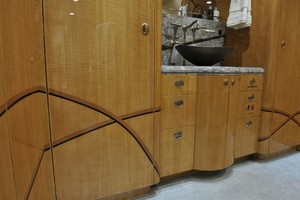

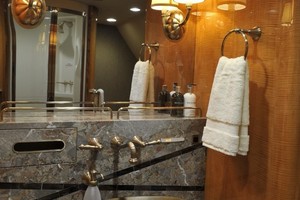

• The fully equipped aft lavatory is equipped with vanity, toilet and shower
