Авионика:
Type of Unit Quantity Description

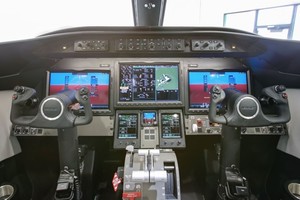

EFIS (Electronic Flight Instrument System) 3-tube Garmin 5000 – 14” diagonal LED displays
FMS (Flight Management System) Dual Garmin w/24 Channel GPS, WAAS, LPV
VHF COM (Very High Frequency Radio) Dual Garmin Comms with 8.33k kHz Spacing
NAV (Navigation Radio) Dual Garmin Navigation Receivers
FIS (Flight Information System for electronic chart) Single Garmin Flight Information System
SVS (Synthetic Vision Systems) Single Garmin Synthetic Vision System
TCU (Touch Controller Unit) Dual Garmin GTC-570 Touch Controllers
ADC (Air Data Computer) Dual Garmin GDC-7400Air Data Computer
DME (Distance Measuring Equipment) Single Garmin DME-4000 Transceiver
AHRS (Attitude Heading Reference System) Dual Garmin AHRS
ELECTRONIC STANDBY INSTRUMENT Single Garmin GH-3900 System
ELT (Emergency Locator Beacon) Single ARTEX C406-2
AFCS (Automatic Flight Control System) Single Garmin Autopilot, Yaw damper, FG, pitch trim
HF COM Single Full Provisions- KHF-1050 HF COMM w/Selcal
WEATHER RADAR Single Garmin GWX-70 Weather Radar System
RADAR ALT (Radar Altimeter) Single Garmin radio Altimeter System
XPNDR (Transponder) Dual Garmin GTX-3000 Transponder w/ADS-B out
TAWS (Terrain Awareness Warning System) Single TAWS with Wind shear detection
AHRS (Attitude Heading Reference System) Dual Garmin Attitude Heading Reference System
TCAS (Traffic Collision Avoidance System) Single Garmin GTS-8000 TCAS II w/change 7.1
CVR (Cockpit Voice Recorder) Single Garmin Solid State CVR (120 minutes)
Оборудование:
Takeoff and Landing (TOLD) Performance Database
Additional 110V Outlets in Cockpit
Wiring Provisions – Datalink Digital Radio
Smartphone Handsets - Wired
Swift Broadband System
110 VAC Galley Outlet (Double Club Floorplan)
XM Satellite Weather
Structural/Wiring Provisions-Digital Flight Data Recorder (DFDR)
Surface Awareness System (SAS)
REMARKS
Aircraft located in ICT Wichita, Kansas

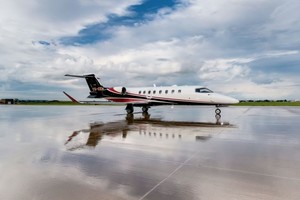

Экстерьер:
Brand New Paint by Bombardier Learjet Factory in Wichita, Kansas on June 2017
Overall Matterhorn White Base with Black, Autumn Red & Sand Accent Stripes

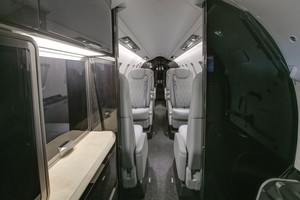

Интерьер:
Eight (8) Passengers Seats Belted LAV seat.
REFRESHMENT CENTER
Single hot liquid container.
• One (1) ice drawer with two (2) ice. compartments and single overboard drain.
• One (1) 4.3” Cabin Management System control panel.
• One (1) iPod® 30-pin docking station.
• Trash storage, and miscellaneous storage.

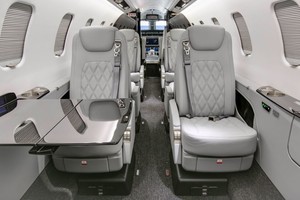

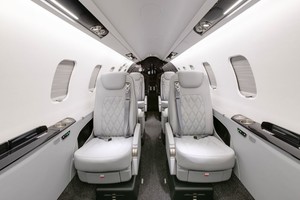

• Eight (8) passenger seats in double club configuration with swivel and reclining capability as well as inboard armrests.
• Arm ledge & lower side ledge storage.
• Convenience panel with reading lights, table lights, air vents and oxygen masks.

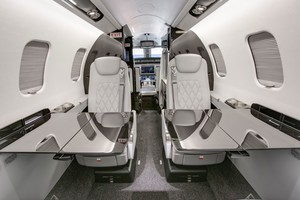

• Three (3) folding tables and one (1) plug-in table.
• Curtain closeout to cockpit.
• Audio System, which consists of the following:
Sidewall cabin speakers, audio amplifier and headset jack provided at each seat location.
• Video System, which consist of the following:
Six (6) 7” popup screens (one at every seat with the exception of emergency exit club seats), two (2) 4.3” touchscreen controllers at emergency exit club seats, one (1) 12.1” high-resolution flat panel screen LCD monitor installed on the aft side of the LH forward cabinet; one (1) moving map system with worldwide map selection and, one (1) HDMI input port located at the VIP seat.
• Cabin control capability at each seat, which consist of the following:
One (1) passenger control panel equipped with table and reading light switches as well as a scroll wheel for means of navigation on the passenger touch screen and; one (1) USB charger limited to smart phone charging capabilities.
• Electrical Outlets:
Five (5) 110 Volt 60 Hz, universal AC outlets.
One (1) in the aft lavatory and four (4) in the cabin.

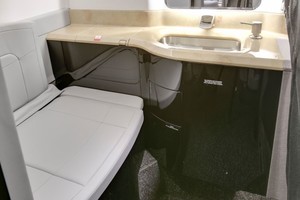

LAVATORY Aft Right-Hand Optional Belted Flushing Lav.
