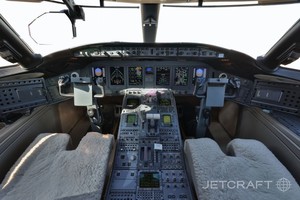

Авионика:
The Bombardier Global XRS is equipped with an integrated, Honeywell Primus 2000XP avionics suite. A general summary of this aircraft’s avionics suite is as follows:
Type of Unit Quantity Unit Description
EFIS (Electronic Flight Instrument System) Six-Tube Honeywell DU-875
FMS (Flight Management System) Triple Honeywell NZ-2000
CDU (Central Display Unit) Triple Honeywell CD-820
IRS (Inertial Reference System) Triple Honeywell LASEREF IV
GPS (Global Positioning System) Dual Honeywell
MADC (Micro Air Data Computer) Triple Honeywell AZ-950
NAV (Navigation Radio) Dual Honeywell RZ-851
DAU (Data Acquisition Unit) Quad Honeywell DA-810
IAC (Integrated Avionic Computer) Triple Honeywell IC-810
HUD (Head Up Display) Single Bombardier Head Up Display
EVS (Enhanced Vision System) Single Bombardier Enhanced Vision System
VHF COM (Very High Freq. Communications) Triple Honeywell RCZ-833M (Dual) and RCZ-833 (Single)
HF COM (High Freq. Communications) Dual Collins HF-9031A
SATCOM (Satellite Communications) Single Collins SRT-2100
SELCAL (Selective Calling System) Single Avtech CSD-714
WRADAR (Weather Radar) Single Honeywell WU-880
RADAR ALT (Radar Altimeter) Dual Collins ALT-4000
XPNDR (Transponder) Dual Honeywell RZ-851
EGPWS (Enhanced Ground Proximity Warning System) Single Honeywell Mark V EGPWS
TCAS (Traffic Collision Avoidance System) Single ACSS RT-950 TCAS
CVR (Cockpit Voice Recorder) Single
s Honeywell SSCVR
FDR (Flight Data Recorder) Single Honeywell SSFDR
ELT (Emergency Locator Transmitter) Single Artex 406
LSS (Lighting Sensor System) Single Honeywell LP-860
Оборудование:
OTHER NOTABLE FEATURES
SB700-11-020 – Increased Maximum Take-Off Weight (MTOW) to 99,500 lbs.
SB700-31-034 – Batch 3.3 Avionic Software Upgrade
SB700-34-053 – FANS 1/A and RNP 4
SB700-34-054 – Introduction of SBAS with LPV Approach Capability
SB700-34-062 – ADS-B Out (DO-260B)
External Camera System
ENTERTAINMENT
Display / TV Monitor(s) Single 31.5” Entertainment Monitor and Dual 24.0” Bulkhead Monitors
Airshow System Collins Airshow w/ Moving Maps
REMARKS
Aircraft is located in Dallas, TX

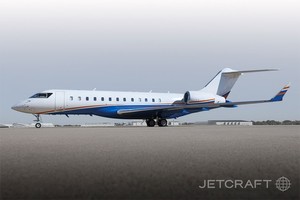

Экстерьер:
Base Paint Color(s) Matterhorn White and Colonial Blue Belly
Stripe Color(s) Cyber Orange
Last Painted May 2019 at Duncan Aviation
Интерьер:
Number of Passengers Thirteen (13)
Galley Location Forward
Forward Cabin Configuration Four (4) Place Double Club
Mid Cabin Configuration Four (4) Place Conference Group Opposite One (1) Single Seat w/ Workstation
Aft Cabin Configuration One (1) Place Single Seat w/ Entertainment Center Opposite a Three (3) Place Divan (When Bulkhead is removed)
Lavatory Location(s) Forward Crew and Aft Executive
Crew Rest Forward
Jump Seat Yes
Last Refurbishment August 2024 (Curtain and Lav Bulkhead)
