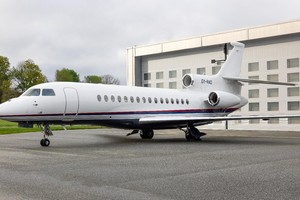

Dassault - 8x

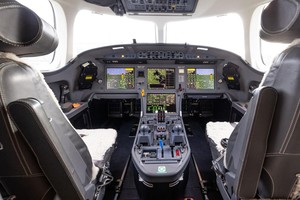

EASY III 4TH CERT. COCKPIT

•Flight Deck - Honeywell EASy III 4th Cert.
•Transponders - Dual Honeywell XS-858B Mode S
•PDU/MFD - 4 x 14.1 inch Honeywell DU-1310
•GPS - Dual Honeywell NV-878A (SBAS Capable)
•MAU - Dual Honeywell EASy MAU-916
•MIRU - Triple Honeywell LASERF V
•Flight Deck Audio – Triple Honeywell AV-900
•EGPWS w/Windshear - Honeywell
•Guidance Panel – Honeywell GP-600
•3D Weather Radar – Honeywell RDR-4000
•FMS - Triple Honeywell EASy
•Air Data - Goodrich Smart Probes
•VHF COM - Triple Honeywell TR-866B
•Goodrich Ice Detector
•HF COM - Dual Honeywell KHF-1050
•SmartView SVS - Honeywell
•Honeywell SELCAL
•FalconEye EVS / CVS
•SATCOM CMF - Iridium (Satcom Direct)
•FalconEye HUD with SVS (LH Pilot Side)
•RAD ALT - Dual Honeywell KRA-405B
•CVR/FDR - Dual Honeywell AR-Combi SSR
•DME – Dual Honeywell DM-855
•QAR - CTS Quick Access Recorder FDM
•ADF - Dual Honeywell DF-855
•AHRS – Honeywell
•CMC - Honeywell CMC-901
•Autothrottle - Honeywell
•TCAS II - Honeywell TPA-100B w/ Change 7.1
•ELT - Honeywell Rescu 406AF w/NAV Interface
•Standby Instrument Display - Honeywell
•Illuminated Switches (Avionics Master System)
•Flight Deck Video Interface - Honeywell
•PWC FAST
•Electronic Jeppesen Charts (Dual)
•FalconBroadcast

OMPLIANCE
•EASA EU Ops (Part CAT)
•SBAS LPV
•Honeywell EASy III 4th Cert Flightdeck
•ATN-B1 Datalink (Protected Mode CPDLC)
•ADS-B Out
•FANS-1/A Datalink (CPDLC & ADS-C)
•CVR (2 Hour Capacity) / FDR (88 Parameters)
•Brake Wheel/Well Heat SB

•Track-Mounted Flight Deck Curtain
•Flight Deck Open Storage Compartment
•Cockpit Third 16G RH Side-Facing Crew Seat
•Flight Deck LH Convertible Crew Closet
•Large Capacity (115 Cu.Ft.) Oxygen Bottle
•Two 13-Man Life Rafts w/406 MHz ELT
•Crew EROS Quick-Donning Oxygen Masks
•Air Cruisers Life Vests
•Aircare First Aid Kit (inc. Essex Smoke Hood)
•Airstair Door (Electric) w/Second Handrail
•Additional Crew-Type Smoke Hood (EASA)
•Towbarless Tool (Tow Head)
•2 x KGS 230 VAC 2000VA Static Inverters
•14 x Power Outlets
•Left Eng Pylon Light to light Baggage Load Area
•Right Eng Pylon Light to light Fuel Servicing Area
•Teleflex Recognition Lights (Tail Fin Illumination)
•Emergency Cabin Lighting (FAR / JAR 25.812)
•Honeywell JetWave Ka-Band MCS 8000
•Galley Bespoke Stainless Steel Liquid Retainer

Rockwell Collins Falcon Cabin Management System incorporating:
1 x Rockwell Collins New Generation 3D Interactive Map (3DIM) Database
1 x Rockwell Collins LED Backlit Touch Screen Galley / Entertainment Control
1 x Rockwell Collins 2 TBytes Media Server Unit (MSU) w/Dedicated USB 3.0 Port
1 x Rockwell Collins 22-Inch Widescreen HD LED Backlit Fwd Bulkhead Monitor
1 x Rockwell Collins 24 Inch Widescreen HD LED Aft Bulkhead Monitor
2 x ALTO Amplifiers
7 x ALTO Speakers
3 x ALTO Subwoofer Speakers
1 x ALTO Speaker per Lavatory
1 x Falcon Cabin Management Kit (USB Charging Cables)

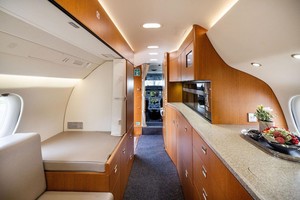

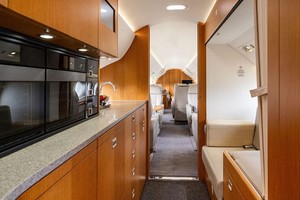

Galley: 93-Inch Galley w/14-Inch Square Sink, Hot/Cold Water Faucet, Countertop, Pop-Out Work Surfaces, Outboard of Countertop Stainless Steel Liquid Retainer w/Drain, Storage Compartments (Glassware, Chinaware, Flatware, Utensils, Wine, Soda Cans, Water Bottles, Condiments, Multi-Purpose, Loose Equipment, Trash, Bus Bins), Microwave Oven, 2 x Extra-Wide High Temperature Ovens, Full-Size (Large) Chiller; RH Entryway Window with Electric Shade
Crew Rest: 78-Inch FAR Part 135 Certified Crew Rest Area w/Single-Place Side-Facing 29-Inch Wide Divan Enclosed by a Track-Mounted Curtain and Aft-HingedCloset Door.

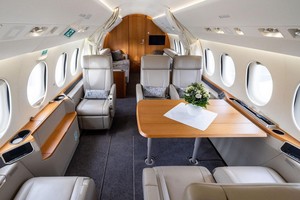

Aft Passenger Cabin: Aft LH/RH Three-Place 80-Inch Divans; Aft Cabin Removable Pleated Acoustic (Sound Dampening) Curtains w/Kydex Stiffeners and Fixed Track in Headliner (held close by Magnets) separating Forward Mid Cabin from Aft Cabin (Exotic Option); Aft Cabin Bulkhead w/Hinged Door opening into an Executive Lavatory.

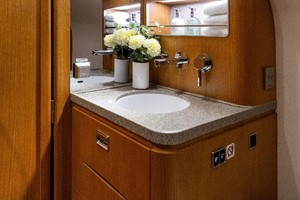

Aft Execitive Washroom: Vacuum Toilet, Sink, Hot/Cold Water Faucet, Countertop, Full-Height Mirror, Vanity Cabinets, Full-Height Storage and Hang-Up Closets, Storage and Access In-Flight (up to FL400) by Pressure Door to the Aft Baggage Compartment.
